ESP8266 Turn On Turn Off Circuit - esp8266,led

Devre


Bu devre Eylül ayından itibaren 502  defa ziyaret edilmiştir.

Video







Açıklama

esp program file, asp website and mssql database definitions were attached.


Desteğinden dolayı Aslan Gözübüyük'e teşekkürler. Sen olmasan yapamazdım :).
Special Thanks to Aslan Gozubuyuk

Setup Esp8266 for Arduino IDE

1. Insert File>Preferences "http://arduino.esp8266.com/stable/package_esp8266com_index.json"
2. Go to Tools>Board>Board manager
3. At the end of list choose esp8266 and start setup
4. After setup you can chose Generic esp8266 from board list
5. From tools for ESP-01 menu set Flash Frequency to 40 MHz, Cpu Frequency to 80 MHz, Flash Size to 512K (64K SPIFFFS)


You can download step by step installation with pictures from download section

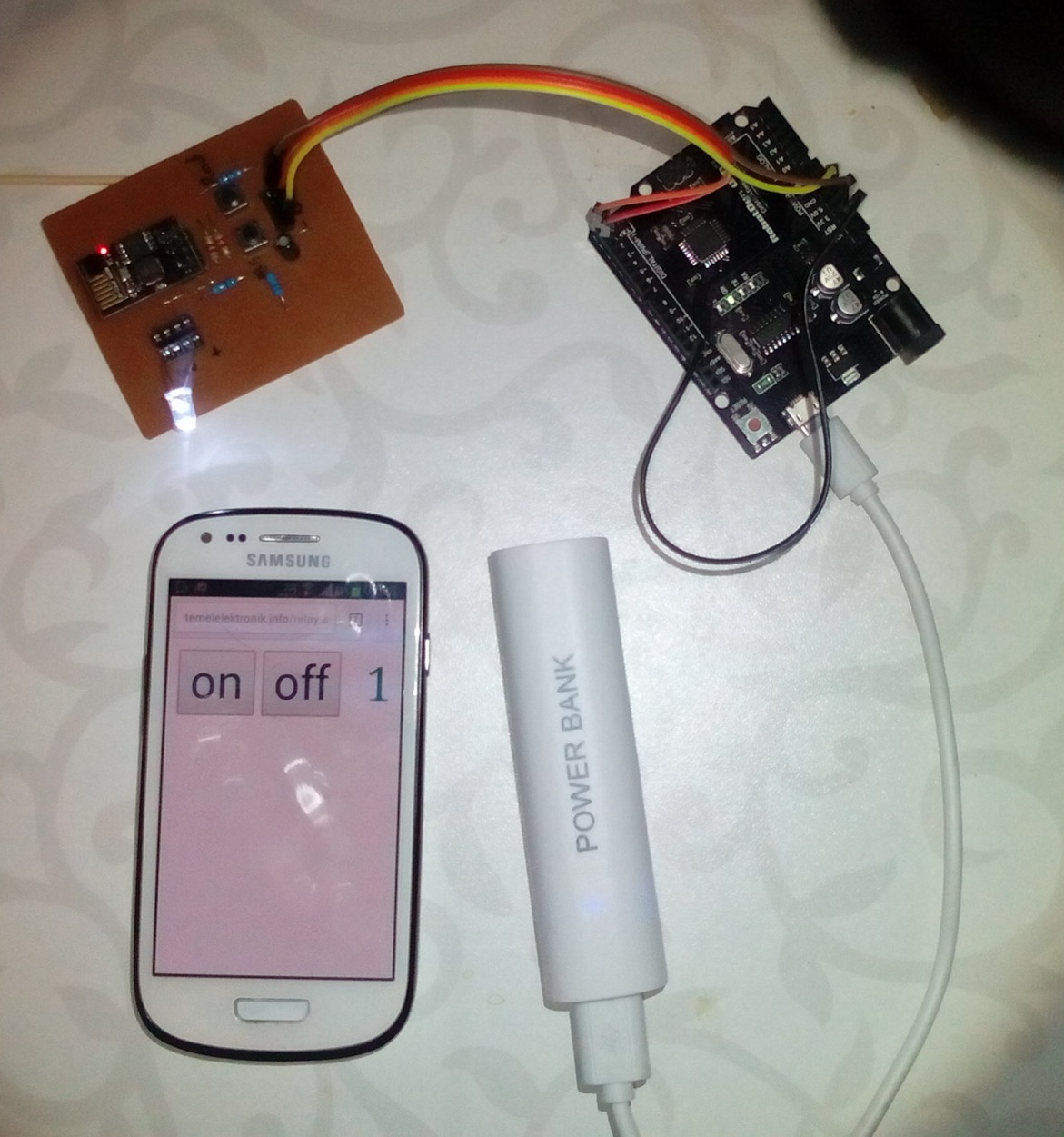

You can turn on and off led from this page
Circuit keeps working below 2.55 Volts
Relay and also contactor control interface web site is here http://temelelektronik.info/relay.aspx?sensor=1
Devre kontrolü için kısa link :goo.gl/6CA5GB

Download

esp8266turnonoff.rar
