ESP8266 Temperature Logger - esp8266,ds18b20

Devre


Bu devre Eylül ayından itibaren 185  defa ziyaret edilmiştir.

Video



Açıklama

program file and required libraries was attached below.

PCB layout file for ESP circuit will be attached.

Program was written in Arduino IDE for ESP8266.

You can see logged temperatures at http://www.temelelektronik.info/lion.aspx?sensor=1

You have to update Arduino IDE from the address of http://arduino.esp8266.com/stable/package_esp8266com_index.json for writing ESP code at Arduino IDE.

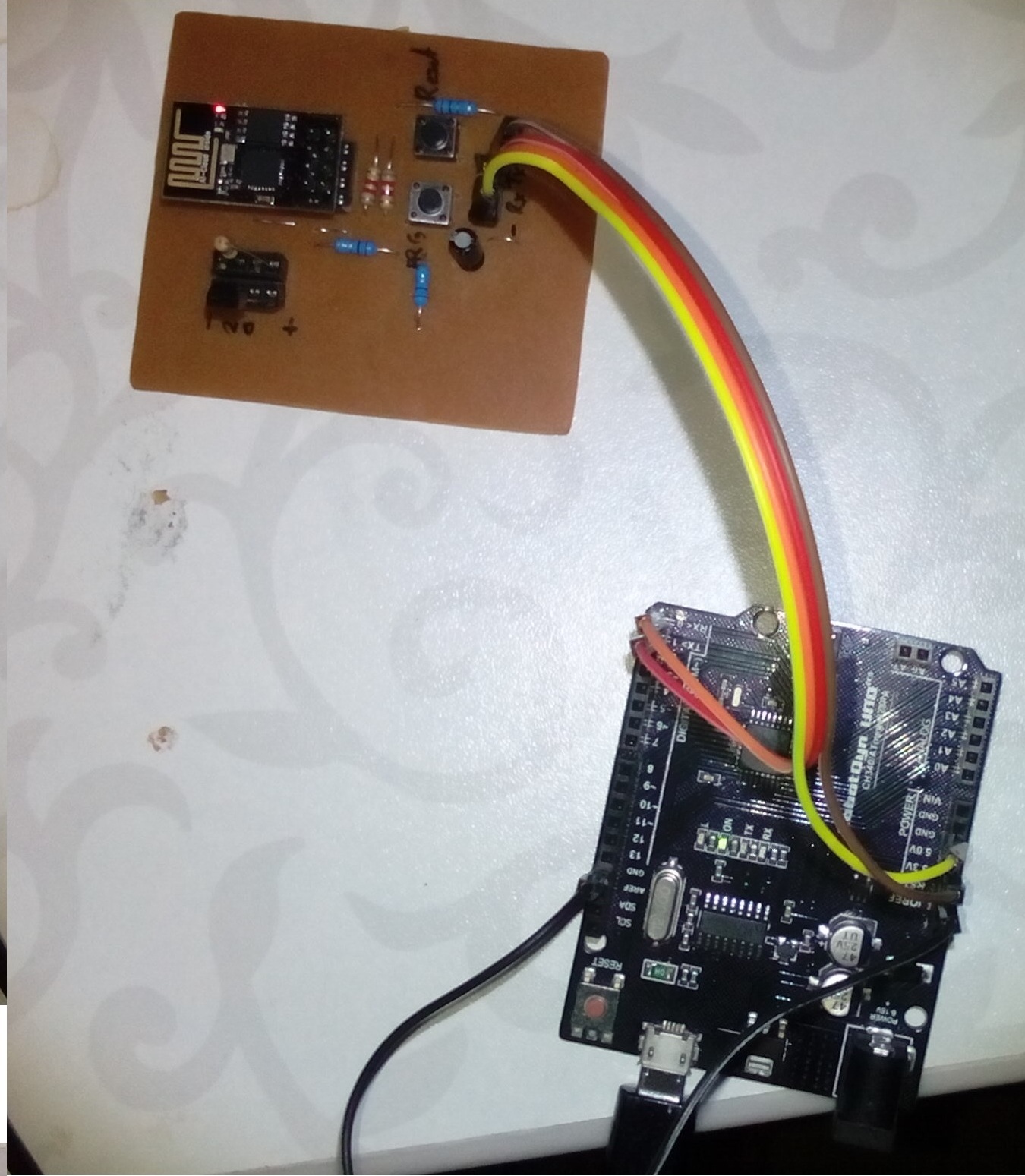

Arduino is only for purpose of serial Monitoring. Circuit can work without arduino.




Desteğinden dolayı Aslan Gözübüyük'e teşekkürler. Sen olmasan yapamazdım :).
Special Thanks to Aslan Gozubuyuk

Setup Esp8266 for Arduino IDE

1. Insert File>Preferences "http://arduino.esp8266.com/stable/package_esp8266com_index.json"
2. Go to Tools>Board>Board manager
3. At the end of list choose esp8266 and start setup
4. After setup you can chose Generic esp8266 from board list
5. From tools for ESP-01 menu set Flash Frequency to 40 MHz, Cpu Frequency to 80 MHz, Flash Size to 512K (64K SPIFFFS)


You can download step by step installation wit pictures from download section

if you want to see logged temperatures click here
