Battery Charging Circuit - lm317,bc547,led

Devre


Bu devre Eylül ayından itibaren 244  defa ziyaret edilmiştir.

Açıklama

Kaynak:http://www.talkingelectronics.com/projects/200TrCcts/101-200TrCcts.html#84B

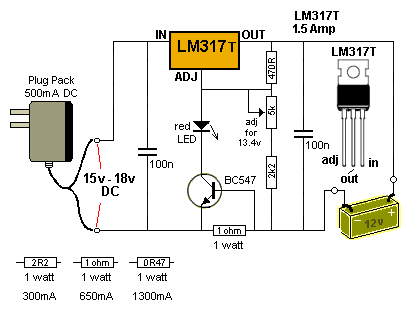

This circuit will charge gell cell batteries at 300mA or 650mA or 1.3A, depending on the CURRENT SENSING resistor in the 0v rail. Adjust the 5k pot for 13.4v out and when the battery voltage reaches this level, the current will drop to a few milliamps. The plug pack will need to be upgraded for the 650mA or 1.3A charge-current. The red LED indicates charging and as the battery voltage rises, the current-flow decreases. The maximum is shown below and when it drops about 5%, the LED turns off and the current gradually drops to almost zero.
PCB file was attached
